Power Automation Testing Software / Can Test Multiple and Grouped Power Supplies to Increase Production Capacity
Power Automated Test Software V4.1 is primarily designed for the Top-Smart modular power testing system:
1.Complies with Energy Star (ENERGY STAR) and IEC 62301 measurement requirements.
2.Conducts parallel barcode scanning during testing, greatly improving the test speed.
3.Supports simultaneous testing of multiple single-group output power supplies, significantly enhancing production line capacity.
4.Supports Simplified Chinese, Traditional Chinese, and English versions with a user-friendly interface that is easy to learn.
5.Supports adding any devices with GPIB, RS-232, USB, etc. interfaces.
6.Powerful report analysis capabilities.
7.Comprehensive information management functions.
8.Can directly generate Excel output.
9.Diverse graphic generation functions.
10.Supports Manufacturing Information System (ShopFloor) interface.
Main Test Execution Interface Description:

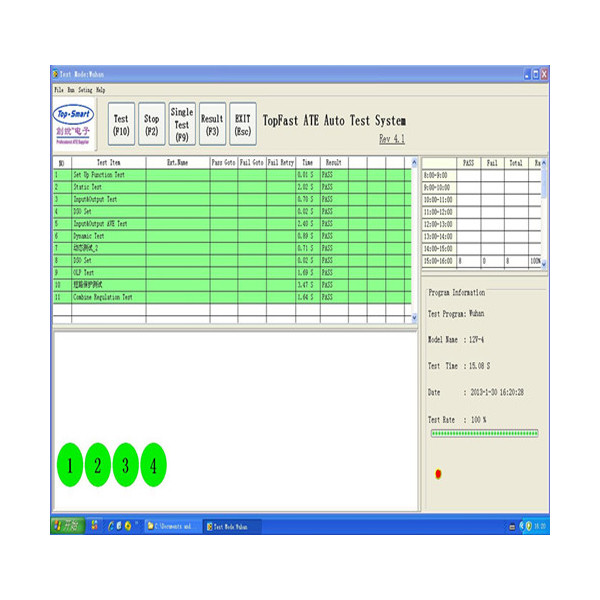

Pressing the TEST button on the main screen of the TopSmart1100 power testing system software will immediately initiate the execution control program. This program will start the initialization of all devices set in the "H/W Config" program and display the results of the initialization in the lower left test process display area. The following image shows the main screen of the execution control program: The main screen of the execution control program is divided into four parts, arranged counterclockwise as follows: Direct Pass Rate Display Area, Program Display Area, Process Display Area, and Test Content Display Area.
Direct Pass Rate Display Area:
This area displays the PASS quantity, Fail quantity, and direct pass rate during the user-defined time period (the time period is set by the user) in the testing process.
Program Display Area:
■ Test Program
■ Model Name
■ Test Time
■ Date
■ Test Rate
Process Display Area:
This area displays the current status, including initialization in progress, testing in progress, and test result display. You can use this screen to understand the current situation.
Program Display Area:
Each test item in the initiated test program is displayed in this area's table. If a column is being executed, it will be indicated with a darker color. Single-step results are shown in green for PASS and red for FAIL.
Test Data Display Area:
During the testing process, test data will be displayed in real-time at the bottom left corner of the window. The display includes the test item name, test specifications (upper and lower limits), test data, and single-step product test results.
Online Instrument Control:
When you select the On_Line Control option from the main screen, the following window will appear. This feature greatly facilitates testing engineers by allowing them to inspect, repair, and adjust instrument connections, equipment wiring, and fixtures.
